What is Pulsed Laser Deposition (PLD)?

Pulsed Laser Deposition (PLD) is a physical vapor deposition (PVD) technique widely used to fabricate thin films on a variety of substrates under vacuum conditions. In this process, high-energy laser pulses are focused onto a solid target material, rapidly vaporizing its surface and generating a plasma plume composed of the ablated species. This plume then expands toward a substrate, where the material condenses and forms a thin, uniform film.

PLD is valued for its ability to precisely transfer complex material compositions from target to substrate, making it especially suitable for advanced research and functional coatings. Among the laser sources used, excimer lasers are commonly preferred due to their high pulse energy and short ultraviolet wavelengths. These characteristics enable efficient deposition rates across both laboratory-scale research and industrial production, while also maintaining excellent film quality and near-perfect stoichiometric transfer—an essential requirement for many complex oxide and compound materials.

Stoichiometric Deposition: What and Why?

Stoichiometric deposition refers to the ability to transfer the exact elemental ratio of a target material into a thin film without altering its chemical composition during the deposition process. In Pulsed Laser Deposition (PLD), this means that the deposited film ideally preserves the same stoichiometry as the source target.

Stoichiometry—the precise ratio of elements in a compound—is a key factor that determines a material’s structural, electrical, optical, and chemical properties. Even small deviations in this ratio can significantly change film performance. Therefore, maintaining correct stoichiometry is essential for producing thin films with predictable and reproducible behavior.

For example, if the target material is titanium dioxide (TiO₂), the goal is to ensure the deposited film also retains the Ti:O ratio of 1:2. If the target itself deviates from this composition, such as Ti₁.₅O₂.₅, the resulting film will typically reflect that same imbalance, potentially leading to altered conductivity, transparency, or catalytic activity.

One of the key advantages of PLD is its ability to preserve complex material compositions during ablation and transfer, making it especially suitable for multicomponent oxides and advanced functional materials where precise stoichiometry is critical.

Excimer Lasers – High Photon Energy and High Fluence

In Pulsed Laser Deposition (PLD), achieving precise control over film quality requires not only accurate stoichiometric transfer but also careful tuning of laser parameters such as pulse energy and fluence (the energy delivered per unit area). These factors strongly influence the microstructure, density, and surface morphology of the deposited film.

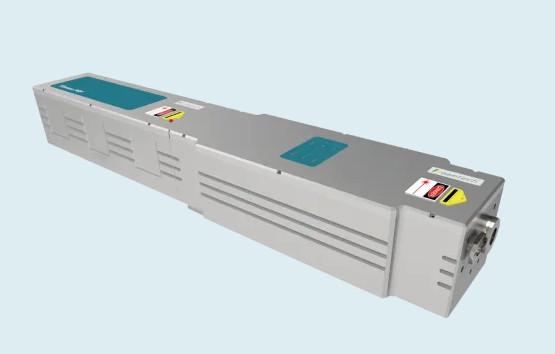

Excimer lasers are particularly well-suited for PLD because they offer both high photon energy and a broad, precisely controllable fluence range. This combination enables efficient ablation of target materials while maintaining excellent control over deposition conditions. Advanced systems such as Beamtech excimer lasers provide exceptionally high pulse energy, supporting rapid deposition rates that are essential for both research-scale work and industrial production.

A Growing Range of Applications

The combination of high deposition rates and excellent stoichiometric transfer makes excimer-based PLD a proven and scalable method for producing high-quality functional thin films. One of its most important industrial applications is the fabrication of rare-earth barium copper oxide (REBCO) superconducting layers, which are critical for multilayer high-temperature superconducting (HTS) tapes. These applications demand exceptional film uniformity and compositional accuracy, both of which PLD can reliably deliver.

Beyond superconductors, PLD is widely used in several advanced technology fields. In optical coatings, it enables the deposition of thin films with precisely engineered refractive indices, allowing controlled manipulation of light for mirrors, filters, and anti-reflective surfaces. In electronics and photovoltaics, PLD is used to grow semiconductor thin films such as silicon and other functional materials for devices including solar cells and sensors.

PLD is also important in the development of transparent conductive oxides (TCOs), which serve as front electrodes in photonic devices that either emit or detect light. These materials require a unique combination of high electrical conductivity and optical transparency, which PLD can help achieve with high precision.

In the biomedical field, PLD is used to create biocompatible coatings for medical implants and devices. For example, hydroxyapatite—a calcium phosphate compound similar to the mineral component of bone—can be deposited onto titanium implants to enhance osseointegration, promoting better bone growth and improving long-term implant stability.

Bottom line on PLD

Despite these challenges, PLD continues to be a widely used and valuable technique for the deposition of thin films. Its ability to deposit high-quality films with specific desired properties has made it an important tool in a variety of industries and applications.

In summary, PLD is an important technique for the deposition of thin films with specific desired properties. Its versatility and ability to deposit high-quality stoichiometric films make it a valuable tool for material science and engineering research and for the development of a wide range of thin film industrial applications, including optical coatings, electronic devices, and biomedical applications.
